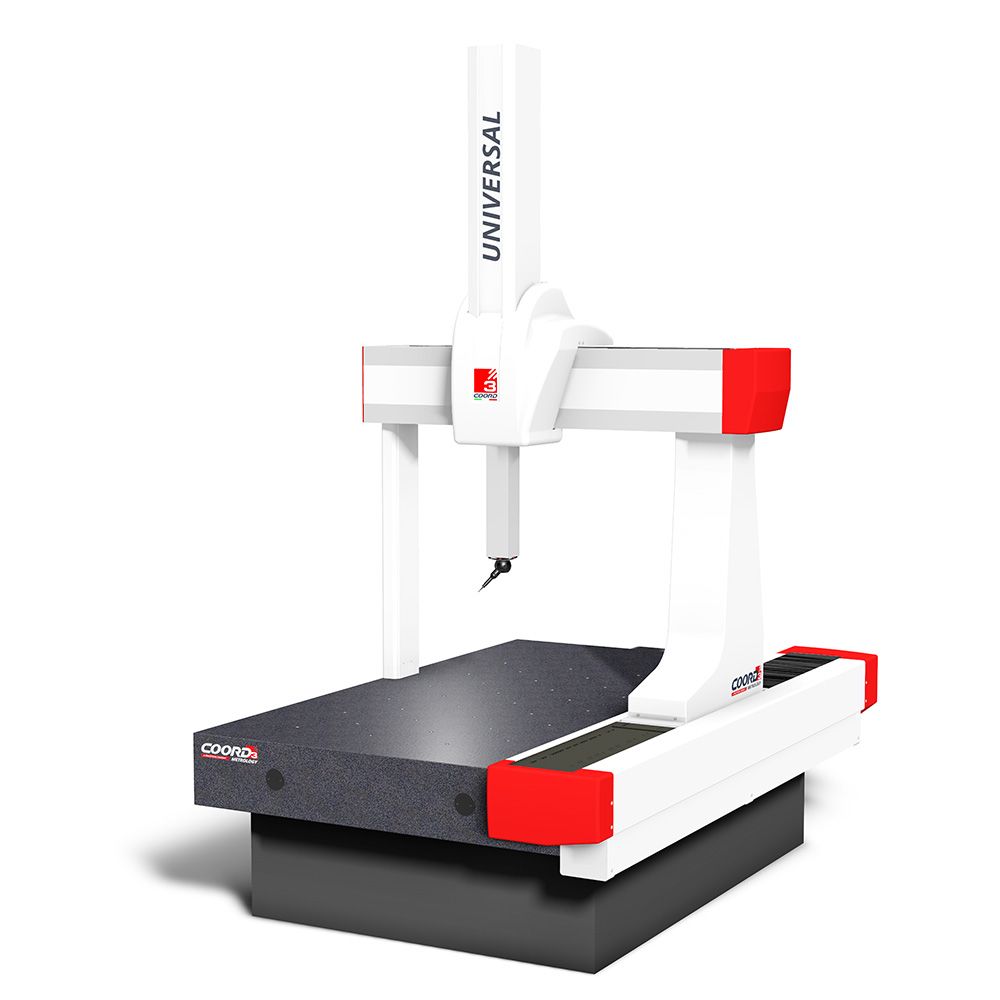

COORD3 UNIVERSAL

4.0/5 rating (2 votes)

GENERAL CHARACTERISTICS

Ultra rigid mechanical structure for maximum scanning precision
Structure highly reactive to environmental temperature changes
CAD FEA assisted design of the extruded crossbar in aluminum alloy to minimize inertial effects at maximum dynamics
Monolithic granite support surface with integral dovetail sliding guide
Grid of M8 holes for fixing equipment on the support surface
Sliding system on pneumatic shoes with ultra-rigid isostatic support on all measuring axes
Pneumatic balancing Z axis
High resolution (0.1 micron) optical lines with carrier sliding system with dynamic signal processing
Digital trajectory control system to optimize metrological performance

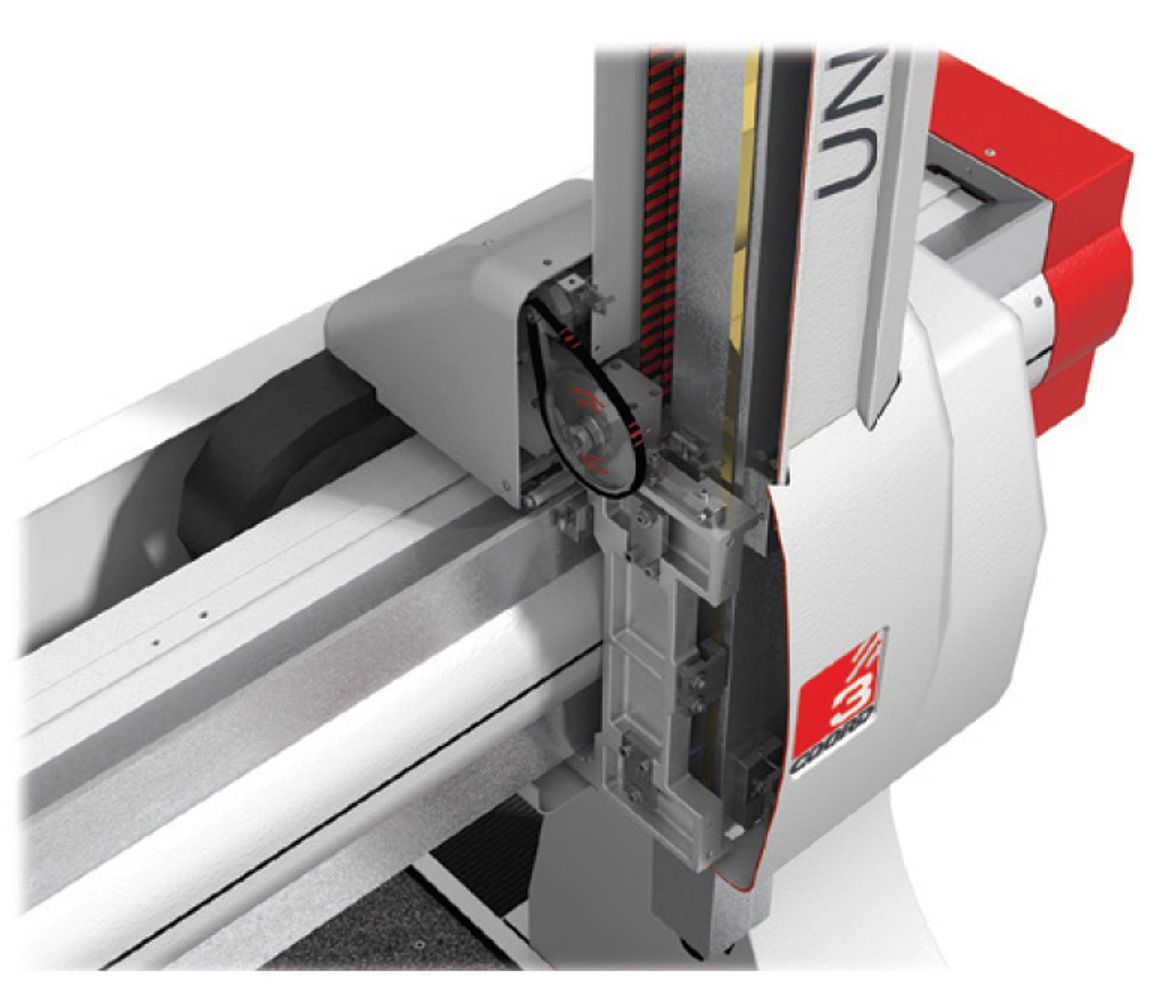

Transmission system without hysteresis with toothed belts on all axes
Passive system of isolation from environmental vibrations
Easy access to the measurement volume
Vector positioning speed up to 866mm / sec
Vector acceleration up to 1500mm / sec 2
