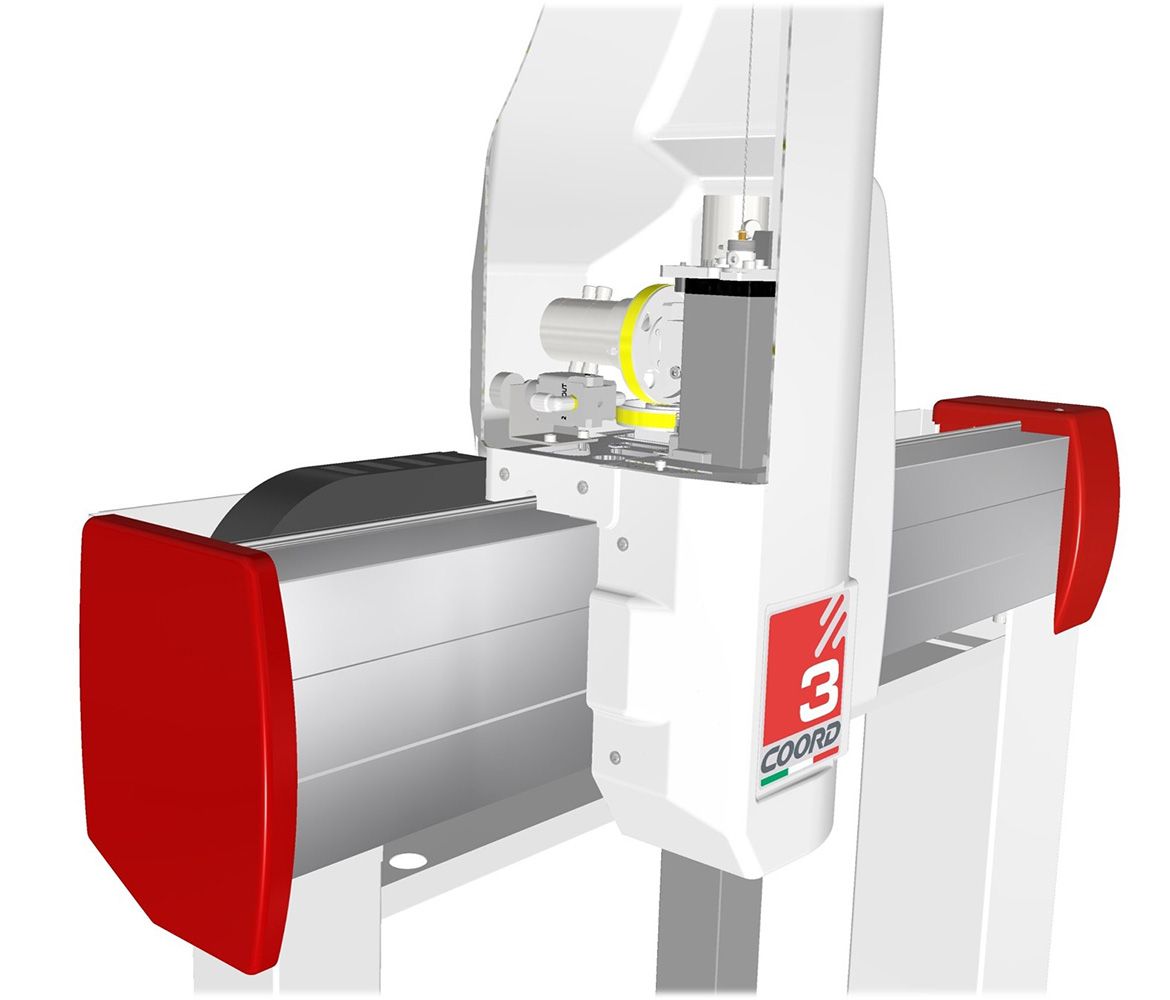

COORD3 BENCHMARK

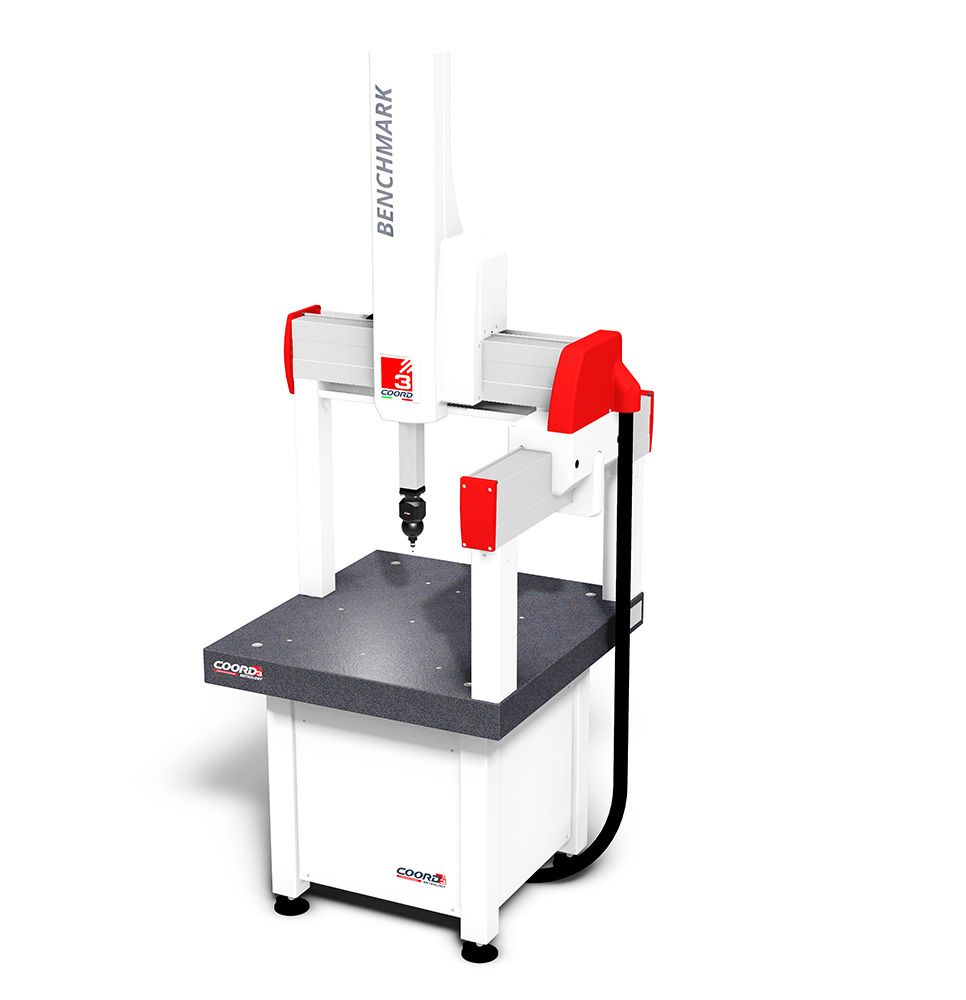

CMM BENCHMARK
GENERAL CHARACTERISTICS
BENCHMARK is available in two manual or CNC configurations. Manual machines can be upgraded to the full CNC version later on site, offering the possibility of a two-phase investment.
- Ultra-rigid advanced alloy platform
- Rapid thermal diffusion through the frame when the temperature changes
- The FEA design guarantees an optimal moment of inertia and rigidity , allowing for strong accelerations
- Base composed of a single piece of granite with M8 threaded top inserts in a large checkerboard design
- Rigid air bearings
- Pneumatic counterbalance Z axis
- Measurement scales with 0.1 micron resolution with dynamic signal processing
- Fully digital motion control with probe path fusion for optimal CMM performance
- Friction reducers with hysteresis close to zero on all axes
- Passive vibration damping system that isolates from external vibrations
- Free access to the CMM measurement area
- Maximum positioning speed : 500 mm / sec
- Maximum acceleration : 1500 mm / sec2
