COORD3 KRONOS

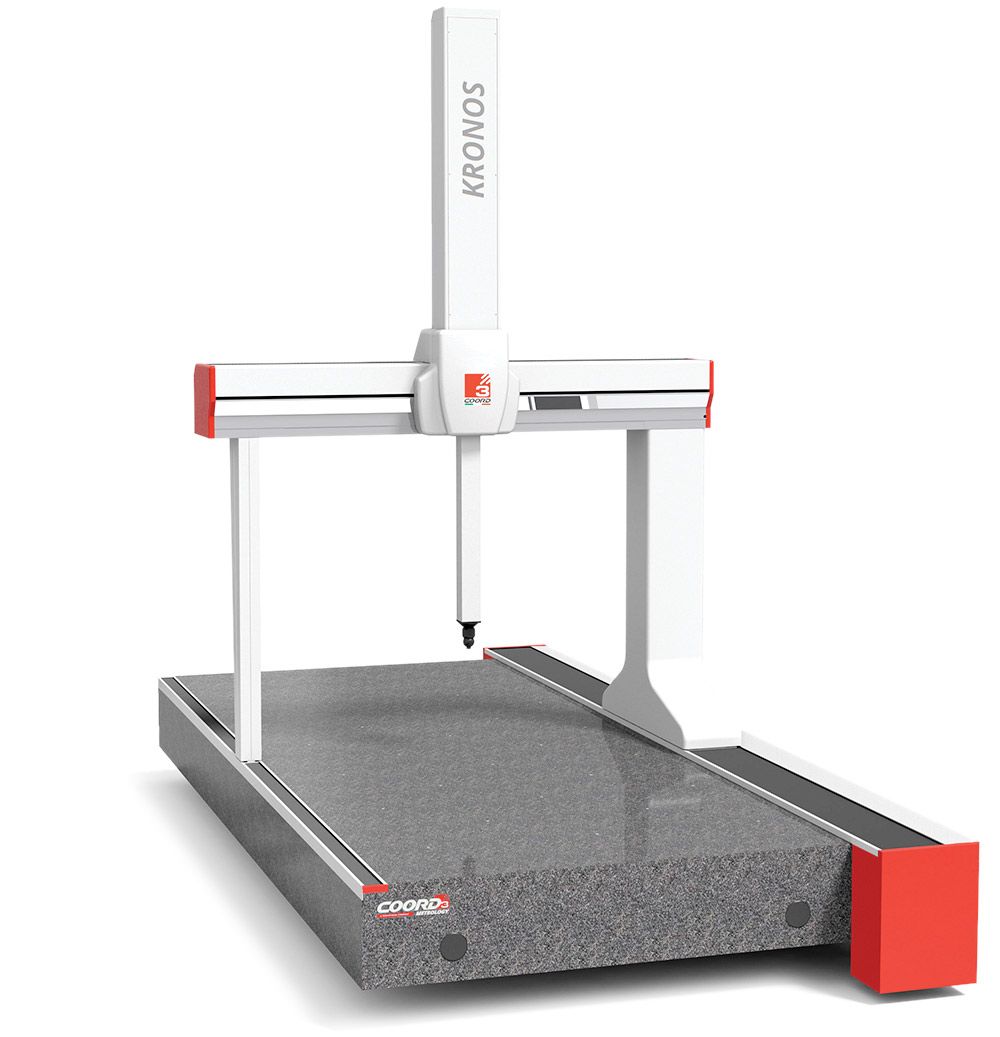

CMM KRONOS
The KRONOS series is also available in the NT version , equipped with the innovative Silicon Carbide mandrel for even greater metrological performance.
- Mobile carriage structure in aluminum alloy with integrated granite top
- Generously sized Z chuck in light aluminum alloy or Silicon Carbide (NT)
- Mixed rack and pinion drive system without hysteresis for smooth and repeatable handling
- Measurement system with high resolution linear transducers (0.1 µm)
- Multi- sensor automatic thermal compensation system , with piece temperature probe
Each COORD3 CMM is tested according to UNI EN ISO 10360-2.
KRONOS NT 20.15
The indicated performances are valid in the following conditions:
- PH10M / PH10MQ / PH20 / TP20 / TP200: Ø4mm stylus length 10mm
- PH10MQ / SP25: SM1, stylus Ø 5mm x 50mm
- L = measurement length in mm
- Ambient temperature conditions:
T 1: 18 ÷ 22 ° C; Max gradients: 1.0 ° C / h - 2.0 ° C / 24h - 0.5 ° C / m
T 2 : 16 ÷ 26 ° C; Max gradients: 1.0 ° C / h - 5.0 ° C / 24h - 1.0 ° C / m
[1] Maximum allowable error on length measurements according to ISO 10360-2
[2] Maximum allowable error of point taking according to ISO 10360-2
[3] Maximum allowable error of point taking scan according to ISO 10360- 4 for SP25M / SP80 probes
KRONOS NT 13.10 - 15.13
The indicated performances are valid in the following conditions:
- PH10M / PH10MQ / PH20 / TP20 / TP200: Ø4mm stylus length 10mm
- PH10MQ / SP25: SM1, stylus Ø 5mm x 50mm
- L = measurement length in mm
- Ambient temperature conditions:
T 1: 18 ÷ 22 ° C; Max gradients: 1.0 ° C / h - 2.0 ° C / 24h - 0.5 ° C / m
T 2 : 16 ÷ 26 ° C; Max gradients: 1.0 ° C / h - 5.0 ° C / 24h - 1.0 ° C / m
[1] Maximum allowable error on length measurements according to ISO 10360-2
[2] Maximum allowable error of point taking according to ISO 10360-2
[3] Maximum allowable error of point taking scan according to ISO 10360- 4 for SP25M / SP80 probes
