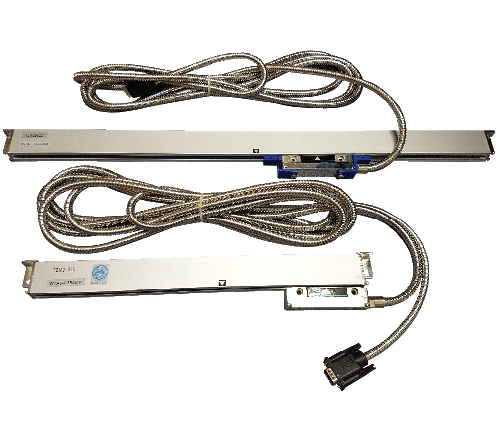

Linear Scale
Features
- Response speed: over 60 meters per minute
- No intermediate interface is needed over 100 meters long-distance data transmission
- Five bearings for excellent repeatability
- Signal cable is protected with multi-layer isolated network and metal soft shell for anti-jarring and water-proof
- Made of aluminum, the scale body is resistant to scratches and corrosion
- Dust sheet is made by special plastics, with lower friction
- Easy installation and maintenance by special design, with good watering-proof and dust-proof
- The sensors adopt the glass precise computation raster as the measuring benchmark
Technical Data
| Product Name | Linear Scale |
||||
| Series Type | Accuracy and Output Signal | Available Length | Resolution | RI | Work Speed |
| WTA5 | 2 TTL square wave 0° and 90°; Additional 4 TTL square wave 0°, 9°, 180°, 270° |
50~1000 | 0.005 | 50mm | 90m/min |
| Other Data | Phase Error: 90°±15° | ||||
| Operating Temperature: 0°C~40°C | |||||
| Storage Temperature: -20°C~50°C | |||||
| WTA | Normal Size: L0=50~1000mm, scales are available in every 50mm L0 =1000~3200 mm, scales are available in every 100mm |
||||
| Max. Travel = normal size +30mm (≤500mm) Signal Cable = 2m |
|||||
| Max. Travel=normal size +30mm (500mm~900mm) Signal Cable = 3.5m |
|||||
| Max. Travel = normal size +50mm (>900mm) Signal Cable = 5.0m |
|||||
